WD08X23476 Dishwasher Tub Gasket Door Seal for GE Hotpoint Dishwashers

WD08X23476 Dishwasher Tub Gasket Door Seal Replacement

Key Features

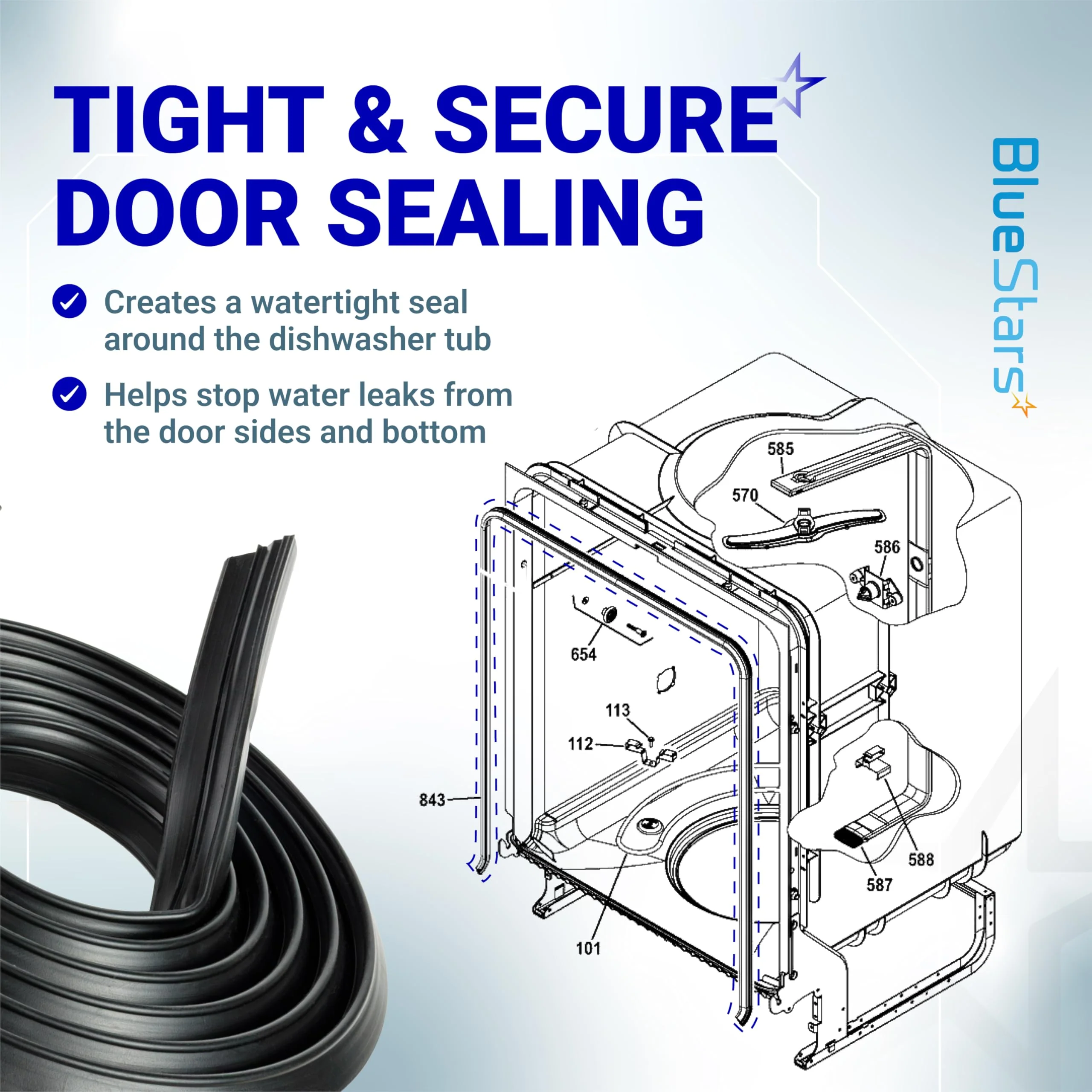

• Restores a watertight seal between the dishwasher door and the tub.

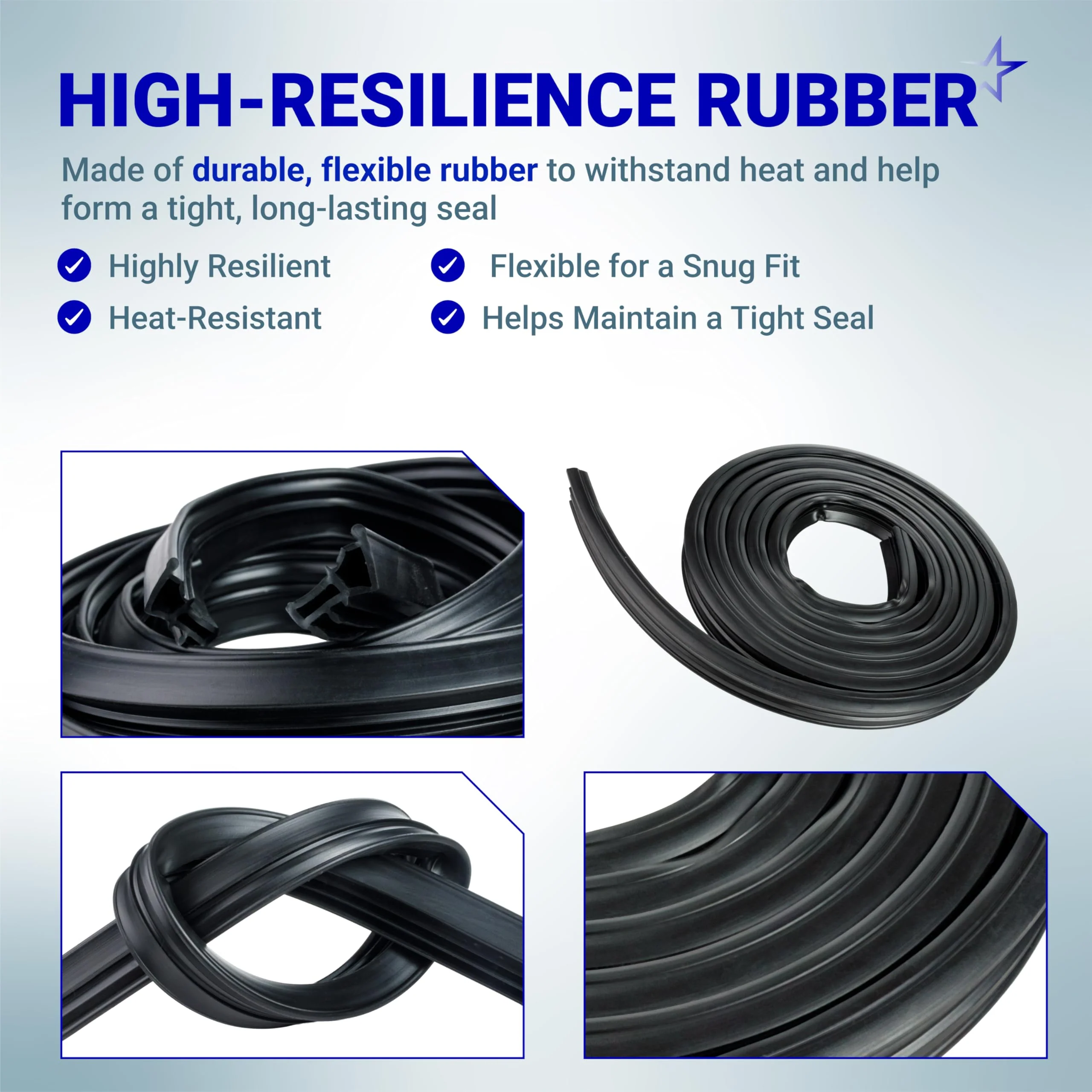

• Durable construction prevents leaks from the sides and bottom of the door.

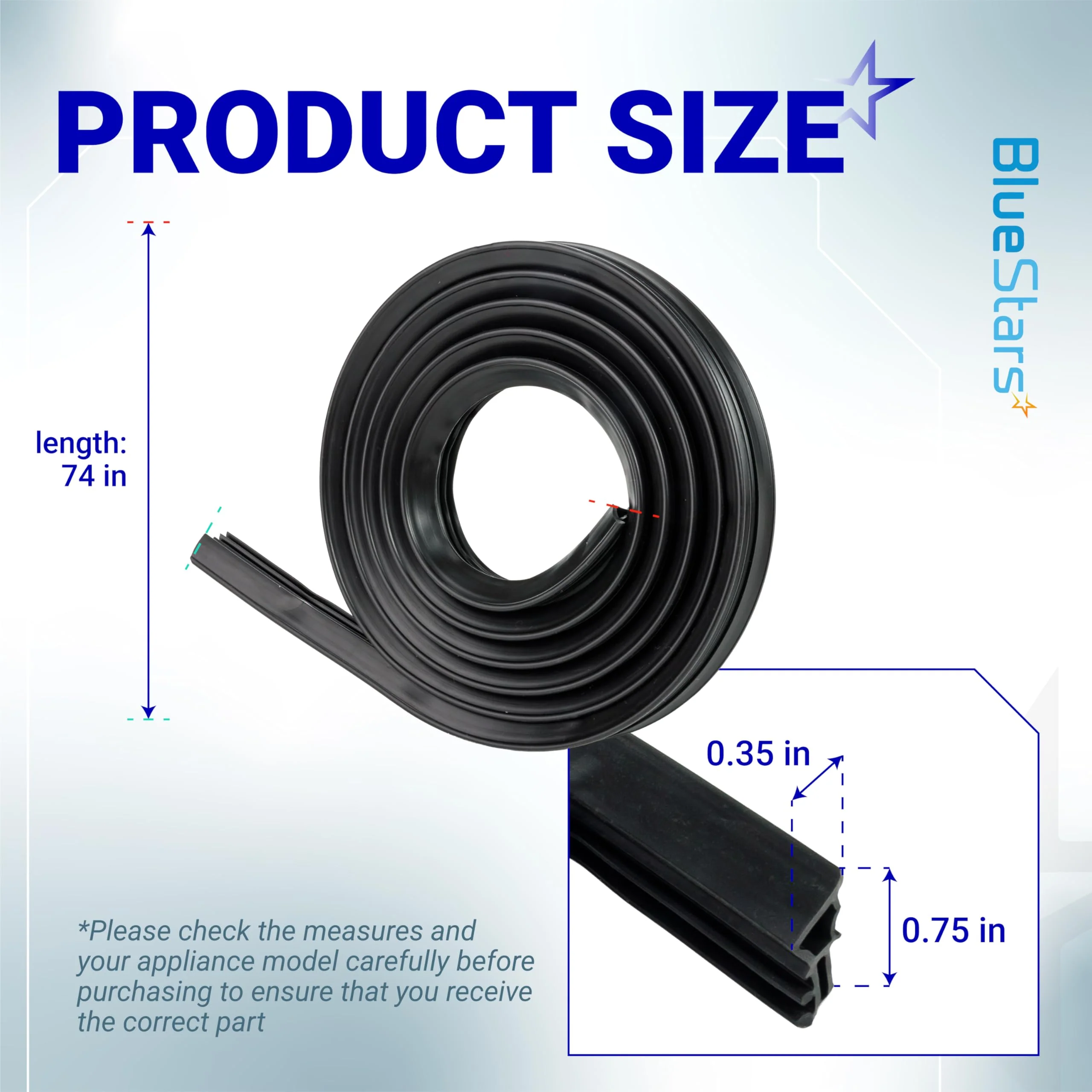

• Approximate length: 73 inches.
• Color: Black.
• Designed as a direct-fit replacement for standard dishwasher door gaskets.

Replaces / Cross-Reference Part Numbers

• WD08X23476
• WD08X22094
• WD08X20674
• WD08X10088
• 4466530
• AP6041569
• PS11774412

Compatibility & Fitment

• Compatible with select dishwasher models manufactured by GE, Hotpoint, and Crosley.
• Verify your specific appliance model number before purchase to ensure proper fitment.

When to Replace

• Visible cracks, tears, or brittle sections in the existing rubber seal.
• Water leaking from the bottom or sides of the dishwasher door during operation.
• Accumulated residue or mold buildup that prevents the seal from closing tightly.
• The door feels loose or does not provide resistance when closing.

Installation Tips

• Disconnect the dishwasher from the power and water supply before beginning repairs.
• Remove the old gasket by pulling it out of the tub channel; clean the channel thoroughly to remove soap buildup and debris.
• Start installing the new gasket from the top center of the door frame, working your way down both sides to ensure it is evenly seated.
• Ensure the gasket is not stretched or bunched during installation to prevent gaps.
• Close the door slowly after installation to allow the seal to compress and conform to the door shape.
