5304522796 Microwave Door Latch for Frigidaire Electrolux Gibson Kelvinator Westinghouse Kenmore

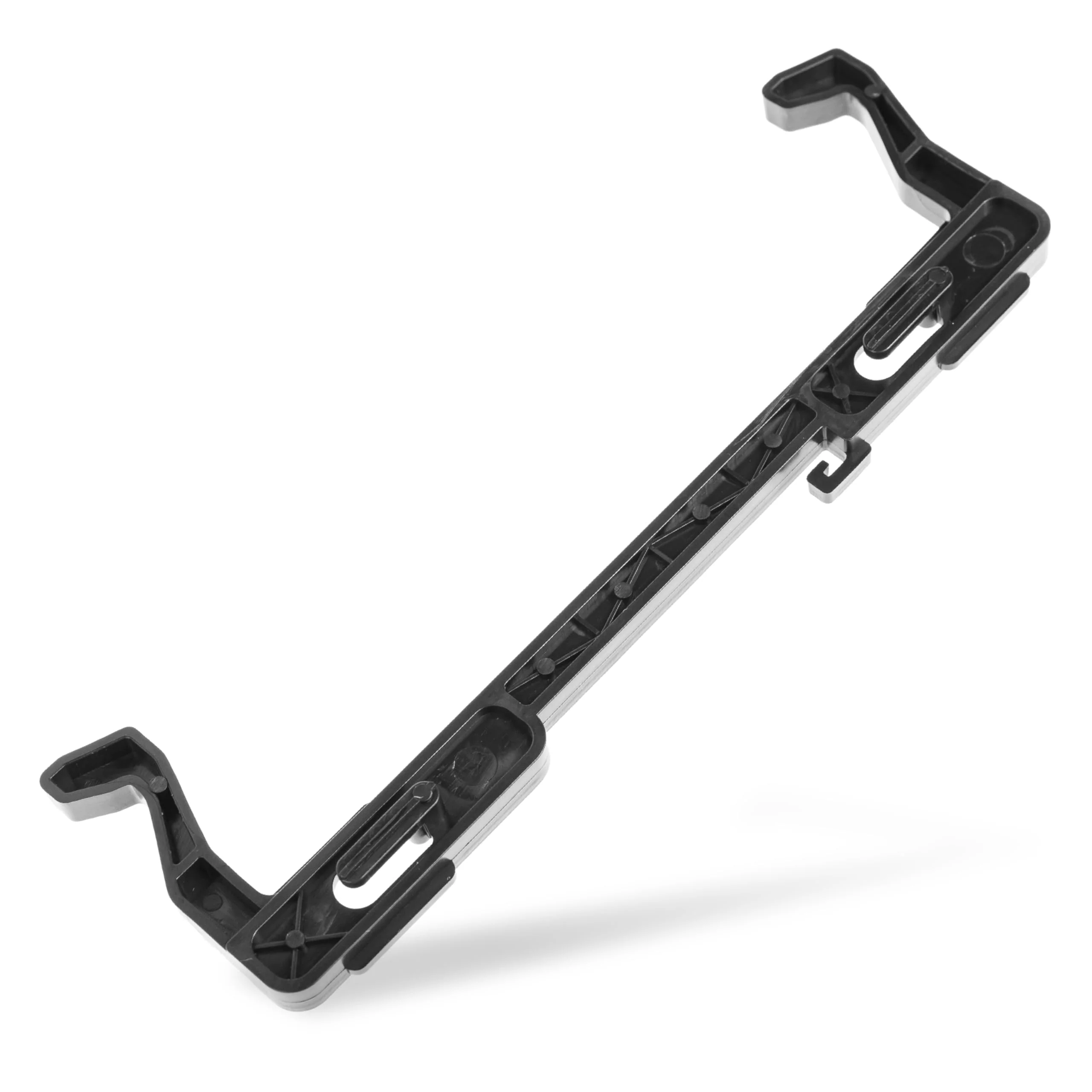

5304522796 Microwave Door Latch

Key Features

• Dual-Hook Safety Design: Features two reinforced plastic hooks that engage with the door interlock switches, ensuring the microwave only operates when the door is fully closed and sealed.

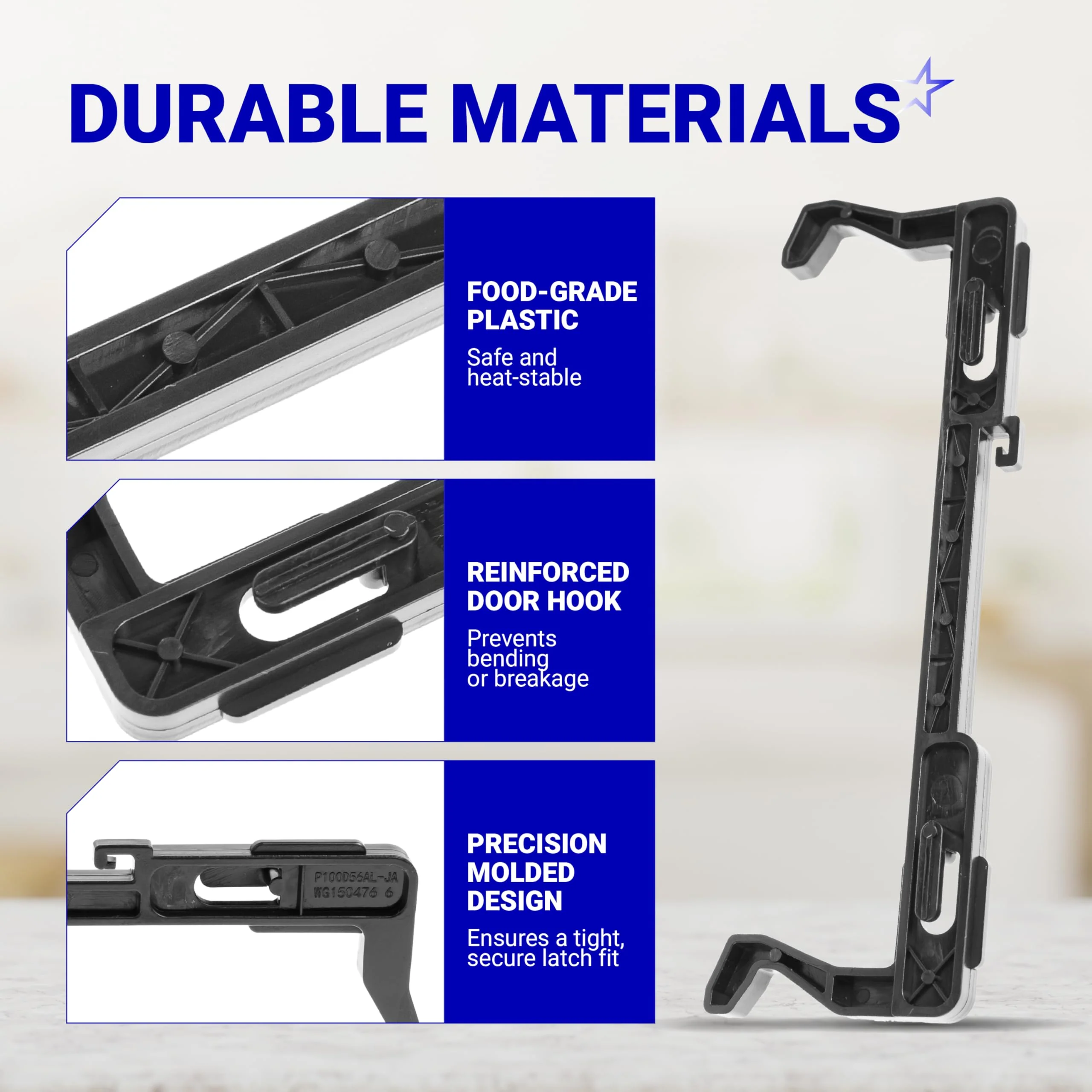

• Heat-Resistant Polymer: Constructed from high-strength, flame-retardant plastic designed to withstand the high temperatures and frequent mechanical stress of daily door operations.
• High-Tension Spring Retention: Includes specialized mounting points for the door spring (sold separately), providing the necessary "snap" to keep the door tightly against the frame during cooking.

Replaces / Cross-Reference Part Numbers

• AP6979662
• PS12746282
• 4977138
• EAP12746282
• OEM20938991

Compatibility & Fitment

This door latch is a standard replacement for many over-the-range and countertop microwaves manufactured by Electrolux. Key compatible brands include:

• Frigidaire: Fits a wide range of Gallery and Professional series models (e.g., FFMV1645TS, FGBM19WNVF).
• Kenmore / Sears: Compatible with various 790-series and 405-series models.
• Electrolux: Fits select high-end convection and standard microwave models.
• Gibson, Kelvinator, & Westinghouse: Compatible with select older and specialty units utilizing the 5304-series latch system.

When to Replace

• Microwave Won't Start: The door is closed, but the "Start" button does nothing because the broken latch isn't engaging the internal safety switches.
• Broken or Chipped Hooks: One or both of the plastic hooks have snapped off, preventing the door from staying closed or latching securely.
• "Door" Error Message: The digital display shows a "Door" or "L" code even when the door appears to be shut.
• Door Pops Open: The latch is worn or cracked, allowing the door to spring open during the middle of a cooking cycle.
• Button Malfunction: You have to press the door release button multiple times or pull on the door manually because the latch is sticking.

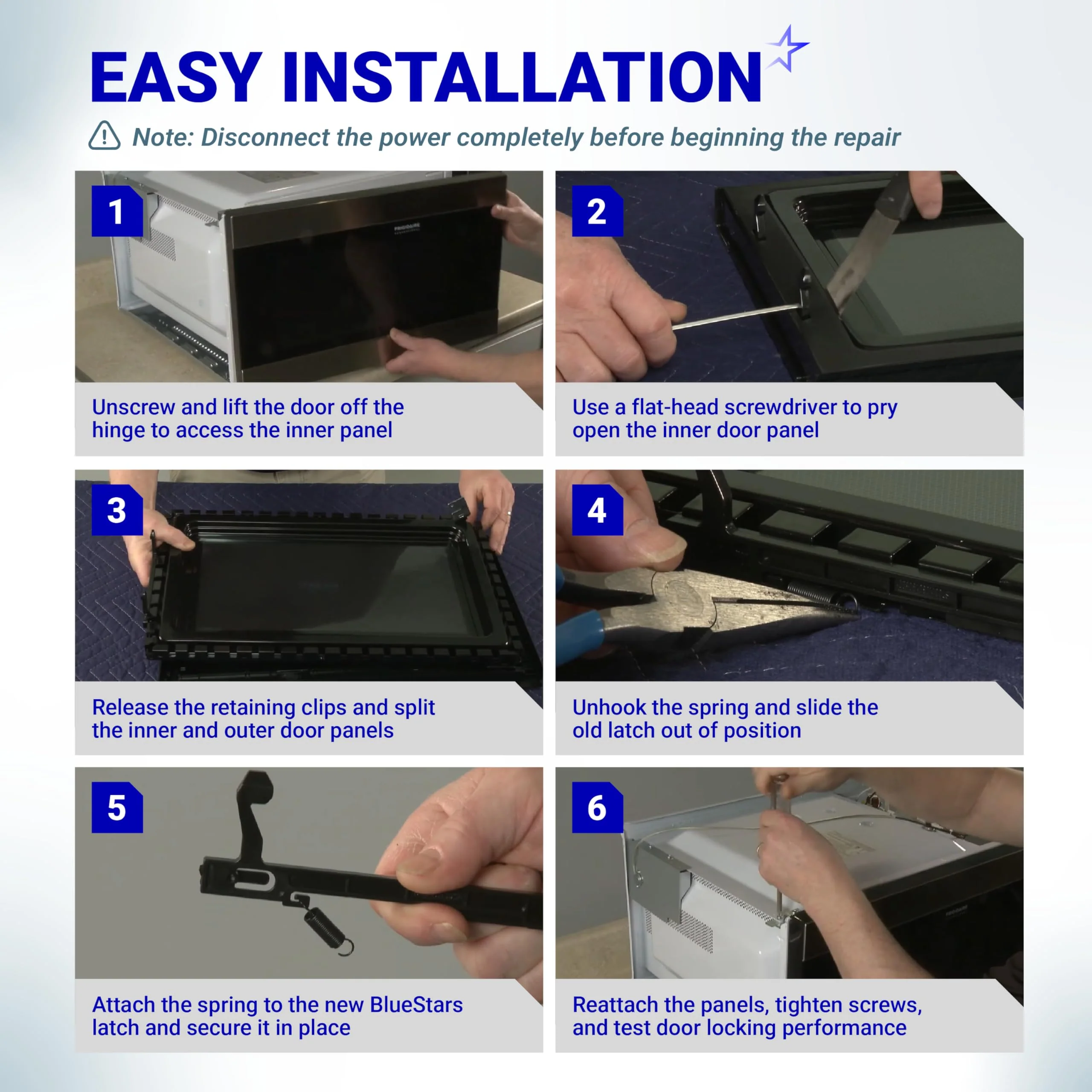

Installation Tips

• Safety First: Unplug the microwave before starting. Microwaves contain a high-voltage capacitor that can hold a dangerous charge even when unplugged; do not touch internal electrical components.
• Accessing the Latch: You will typically need to remove the inner door panel (choke). Use a putty knife or flat-head screwdriver to gently pry the plastic trim around the inside edge of the door.
• Spring Transfer: Carefully unhook the tension spring from the old latch before removing it. Use needle-nose pliers to transfer the spring to the new latch.
• Alignment Check: Before snapping the door trim back into place, test the latch manually by closing the door to ensure the hooks enter the frame holes centered and smoothly.
• Test the Switches: If the new latch doesn't fix the power issue, the internal microswitches (interlocks) behind the frame may have been damaged when the old latch broke.
